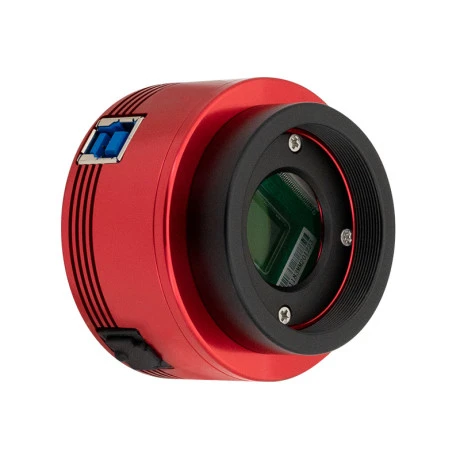

ZWO ASI183MM 20.18 MP CMOS Monochrome Astronomy Camera with USB 3.0 # ASI183MM

DescriptionReport Item

All the goods in the store are in stock, you can buy directly！！

ASI183MM

Introducing the ASI183 camera series, the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%

▶IMX183CLK-J/CQJ-J

Diagonal 15.86 mm Approx. 20.48M-Effective Pixel Monochrome/Color CMOS Image Sensor

▶High-Speed and High-Picture-Quality Rolling Shutter-Type Back-Illuminated CMOS Image Sensors

In the astronomic application field, Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors uses a very high sensitivity back-illuminated structure with high resolution 2.4 μm square unit pixel.  The optical size is 1 inch.

Astrophotography Performance

The ASI183 cameras has a very large full well capacity（15000e） for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

High Speed

Fast FPS can be used in solar(white light) and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

Notice: depends on user’s feedback, this IMX183 sensor has grid pattern noise when do Ha solar imaging,  please take flat frame for calibration(out of focus or add a barlow lens to take flat frames). We recommend our ASI1600/ASI174 mono camera for Ha solar imaging

10Bit ADC
5496×3672    19fps
3840×2160    41.04fps
1920×1080    80.10fps
1280×720      117.30fps
12bit ADC
5496×3672    19fps
3840×2160    36.12fps
1920×1080    70.48fps
1280×720      103.23fps

High QE

Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still a over 60%.

Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

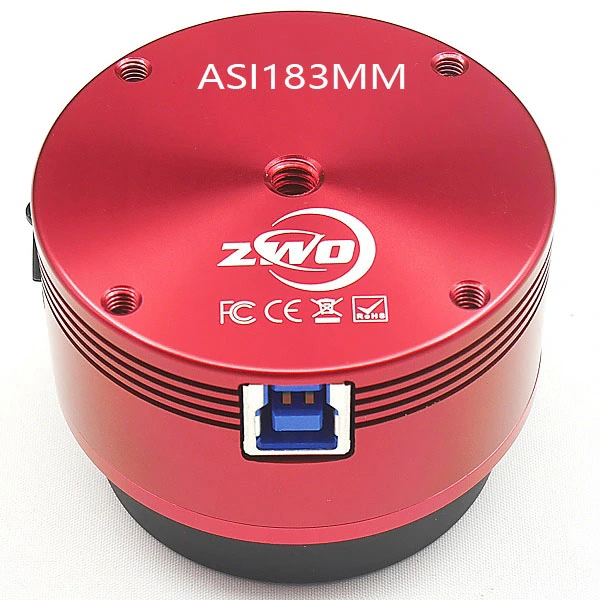

ASI183MM

USB 3.0 Port & ST4 Port

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode)  at full resolution(20.18Mega).

ST4 Port: can be used connect with auto guide port of mount, for guiding.

Mechanical Drawing

What is in the box?

ASI183 box includes all necessary cables, adapters, and manuals.

The USB 3.0 cable in the ASI planetary camera boxes was changed from black to red since June 2023.

Tax
The price list on our website is USD without tax
Please note that buyers are liable to pay tax involved, such as Import tax, VAT , customs handling fee, etc. The additional fees may be collected at time of delivery by courier.

Warranty and Return Policy
We provide 2-year warranty for our products, we will offer the repair service for free within warranty period. After the warranty period, we will continue to provide repair support and service on a charged basis. We do not provide any replacement unless ZWO confirmed the product is DOA (Dead On Arrival).
This warranty does not apply to damage that occurred as a result of abuse or misuse, or caused by a fall or any other transportation failures after purchase.
Customer must pay for shipping when shipping the camera back for repair or replacement. If we confirm you can get a replacement, goods must be returned with all accessories, instructions, etc and must be suitably packed.
If you get a faulty camera, Please contact us as soon as possible. Please describe the problem in detail and we will do our best to help you solve the problem. Most instances perceived problems are simply bad driver install or software configuration.

Drivers and Softwares:

Our website has newest camera drivers and many DSO and Planetary capture softwares. Please make sure the newest driver and software has been installed before you start shooting
