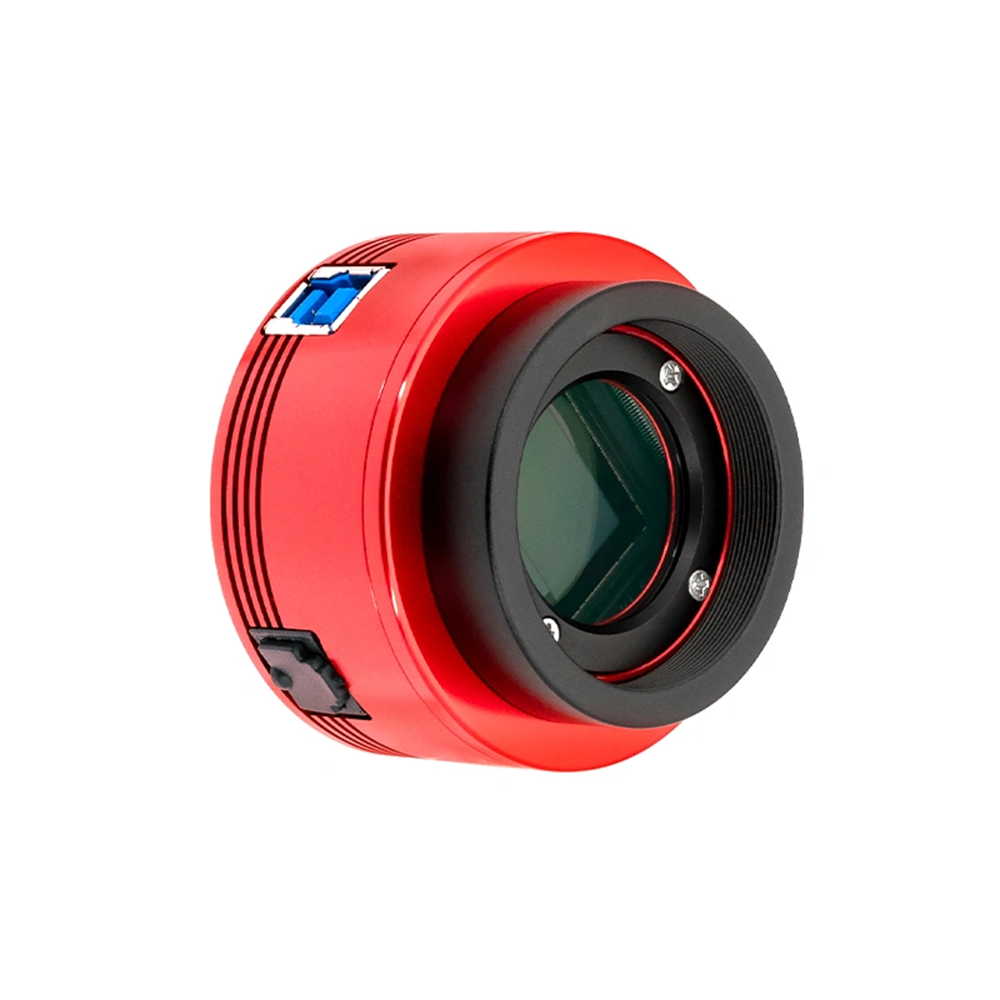

ZWO ASI294MM 11.7 MP CMOS Monochrome Astronomy Camera with USB 3.0 # ASI294MM

DescriptionReport Item

All the goods in the store are in stock, you can buy directly！！

ASI294MM

By popular demand, we now introduce the ASI294MM, the monochrome version of the ASI294MC. Some of the highlights include:

• Back-illuminated sensor – improving sensitivity and reducing noise.
• 4/3” format with 4.64 um pixel size – ideal for many types of telescopes.
• 14-bit ADC – giving high dynamic range.
• An impressive 66ke- full well capacity.
• 4144*2822 high resolution – with the Bin1 mode the camera can operate at a resolution of 8288*5644 and pixel size of 2.3 um.

On top of this, not only does it have a very high QE value with a peak at about 90%, but also feature an ultra-low readout noise of 1.2e. If you are looking for a small-format monochrome camera for planetary imaging, you can’t go wrong with the ASI294MM.

Sensor length*width: 19.1*13.0mm. Diagonal: 23mm.

ASI294 is the first camera in the world that equiped with SONY latest sensor IMX294CJK.

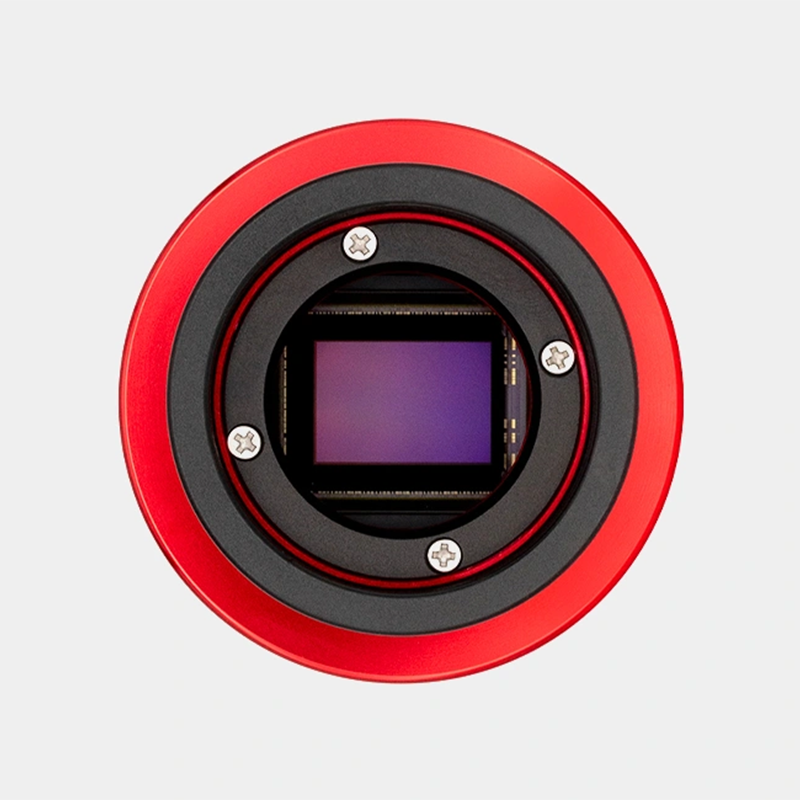

▶IMX294CJK

Diagonal 21.63 mm (Type 4/3) Approx. 10.71M-Effective Pixel Color CMOS Image Sensor, This is the official description on Sony website. In our effort, we remolded it to make it Diagonal 23.2 mm (Type 4/3) Approx. 11.71M-Effective Pixel.

▶High-Sensitivity Type 4/3 CMOS Image Sensor that Supports 4K for Astronomic Cameras and Industrial Applications

The “IMX294CJK” is the first in-house image sensor for astronomic cameras to adopt the Type 4/3 format, and realizes output of the number of pixels needed for 4K at 120 frame/s (in ADC 10-bit output mode, ASI294MC can run up to 25fps at 4k format base on USB3.0 bandwidth). In addition, use of a large-size pixel achieves SNR1s of 0.14 lx* which is very close to the value of ASI224(0.13 lx*).

▶Exceptional low-illumination performance

Exceptional low-illumination performance of SNR1s: 0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 4.63 µm. This makes the IMX294CJK ideal sensor for astronomic camera market applications which requires low-illumination performance.

14bit ADC & 13 stops DR

ASI294 have 14bit ADC and it can achieve 13 stops dynamic range which is even better than ASI1600.

HCG Mode

ASI294MM

The full well capacity of 66387e of ASI294MM is near the top of all ASI planetary cameras. It ensures a very high dynamic range of up to 13 stops that will greatly reduce the issue of overexposed images and also help to collect richer color information.

When the gain value is set to 120, the HCG high gain mode is turned on. We’re not saying it’s magic…but we’d like to think it is pretty close. With the HCG-mode turned on, the readout noise is greatly reduced, and the dynamic range is basically unchanged.

ASI294MM Unlocked Bin1 Mode

Yet another perk of the ASI294MM is that the pixel size is switchable – you can switch between unlocked Bin1 mode and Bin2 mode anytime in your astrophotography software. The unlocked Bin1 mode changes the pixel size into 2.3um and increases resolution to 8288×5644. The ability to unlock bin1-mode was a popular request from our customers. Of course we listened to you and worked quickly to make it possible.

Remember that using Bin1 mode will decrease the full well capacity compared to the standard bin2-mode.

Unlocked Bin1: 12bit ADC, 2.3um pixel size, 47 megapixels, 8288*5644 resolution, 14k full well capacity.

Bin2: 14bit ADC, 4.6um pixel size, 11.7 megapixels, 4144*2822 resolution, 66k full well capacity.

You can learn more differences between unlocked Bin1 and Bin2 modes by comparing the performance charts.

If the sampling accuracy you get with the 2.3um pixel size falls within a reasonable range, then the unlocked Bin1 mode will help you get more object details. However, you will lose dynamic range and ADC bit depth. Also the image files you get at Bin1 will probably be around 4 times bigger than Bin2.

So in the end the unlocked Bin1 mode is double-edged, you may choose to use it or not depending on the specific circumstances during your imaging sessions.

QE Value

As ZWO’s latest BSI (backside illuminated type) mono camera, ASI294MM has very high QE performance, not only higher than its color version, but even ASI1600MM. It is estimated that the QE peak value is about 90%.

ASI294MM vs ASI1600MM

USB 3.0 Port & ST4 Port

ASI294MM

USB 3.0 Port: Providing 5Gb bandwidth to let ASI294MM run at 19fps (12bit, high-speed mode) or 16.3fps (14bit, normal mode) at full resolution (11.7Mega, Bin2).

ST4 Port: This can be used to connect with auto guide port of mount for guiding.

Mechanical Diagram

What’s in the box?

* The USB 3.0 cable in the ASI planetary camera boxes was changed from black to red since June 2023.

Tax
The price list on our website is USD without tax
Please note that buyers are liable to pay tax involved, such as Import tax, VAT , customs handling fee, etc. The additional fees may be collected at time of delivery by courier.

Warranty and Return Policy
We provide 2-year warranty for our products, we will offer the repair service for free within warranty period. After the warranty period, we will continue to provide repair support and service on a charged basis. We do not provide any replacement unless ZWO confirmed the product is DOA (Dead On Arrival).
This warranty does not apply to damage that occurred as a result of abuse or misuse, or caused by a fall or any other transportation failures after purchase.
Customer must pay for shipping when shipping the camera back for repair or replacement. If we confirm you can get a replacement, goods must be returned with all accessories, instructions, etc and must be suitably packed.
If you get a faulty camera, Please contact us as soon as possible. Please describe the problem in detail and we will do our best to help you solve the problem. Most instances perceived problems are simply bad driver install or software configuration.

Drivers and Softwares:

Our website has newest camera drivers and many DSO and Planetary capture softwares. Please make sure the newest driver and software has been installed before you start shooting
