ZWO Anti-dew Heater Strip

DescriptionReport Item

The anti-dew heater strip is used for anti-dew on the front window of the ASI cooled cameras.

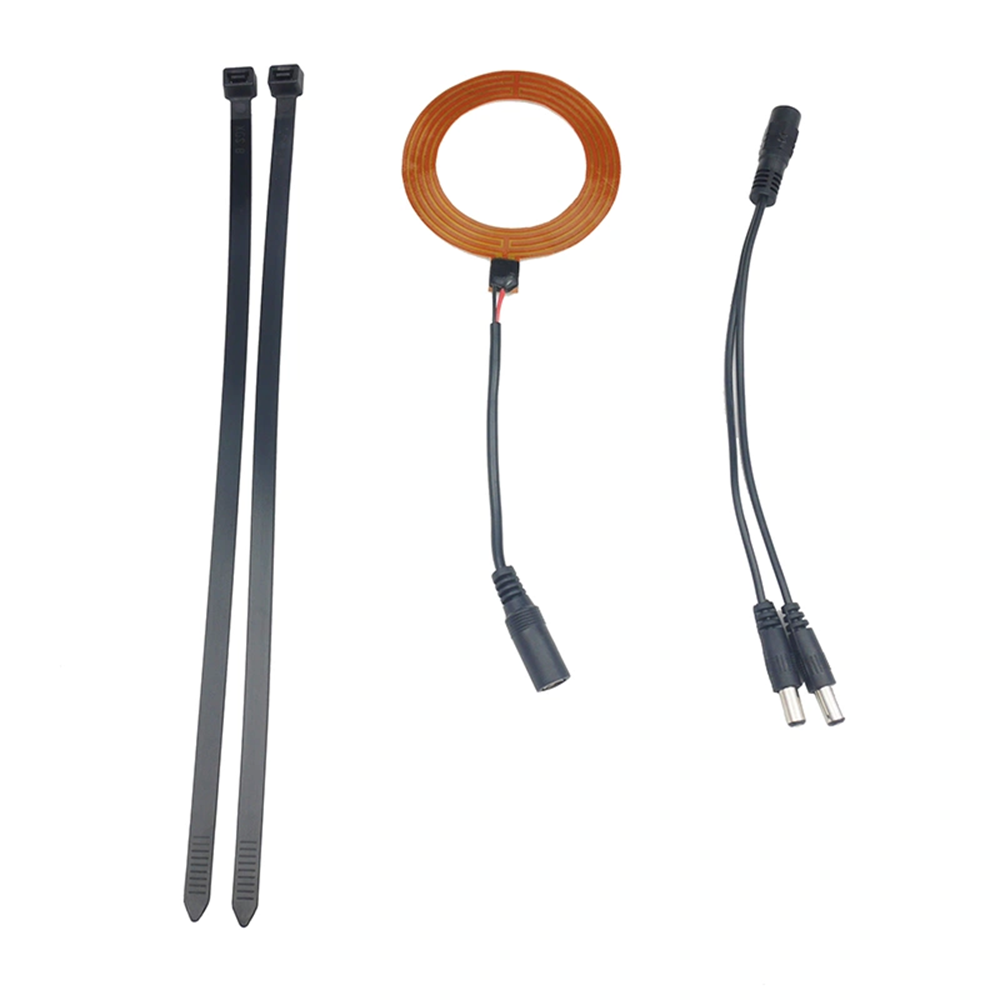

This  kit includes the zip-tie, anti-dew heater strip and an Y power cord：

The thickness of the anti-dew heater strip is 0.2~0.3mm.

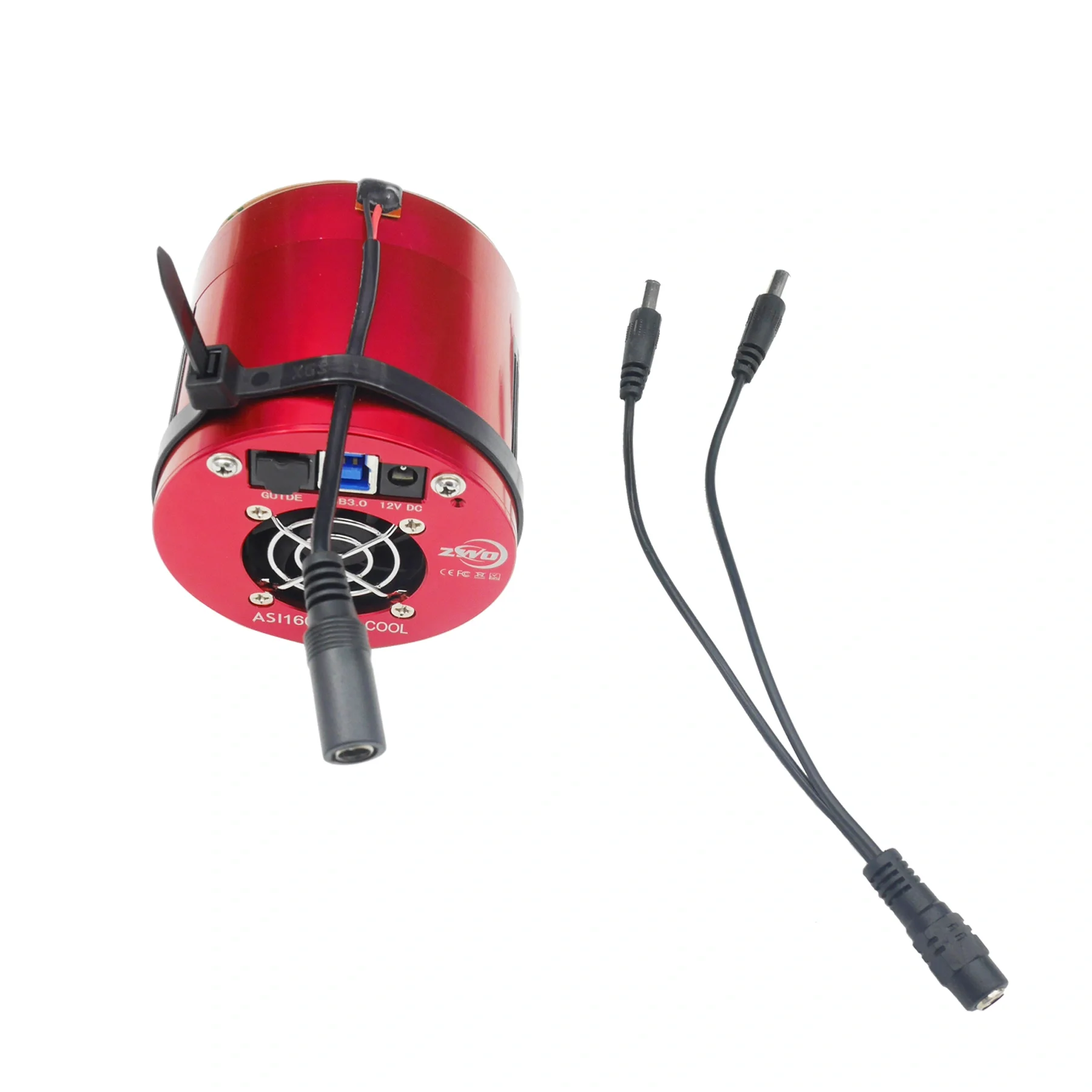

The “Y” power cord is designed to connect in-line with the cooler power supply for convenience.

We recommend a DC adapter giving 12V at 0.35 A  resulting in a heating power on the strip that is around 4.2 watts. You can use one and same power cord to power both the fan and heater simultaneously, but make sure not to exceed recommended amount of Ampere.

NOTE: for many ASI cameras a heater strip is not necessary since they have one that is built into the cameras themselves.

ASI071MC-P/ASI6200/ASI2600/ASI2400 cameras come with an anti-dew heater that will heat the protective glass to avoid any dew problems.

For ASI183/ASI1600/ASI294/ASI533 cameras, the heat emitting from the TEC will be conducted to the camera case and avoid any dew problems when TEC cooling system is working.

How to use it?

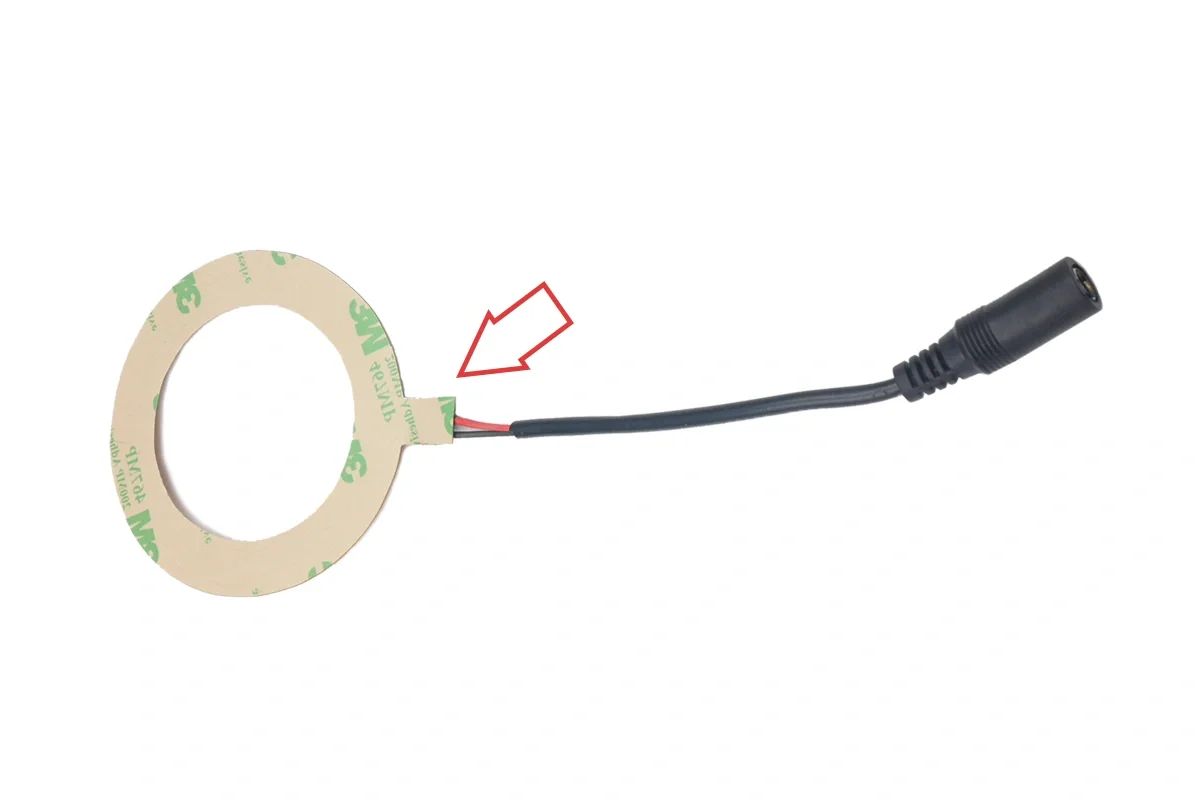

1. Tear out the protective film on adhesive tape

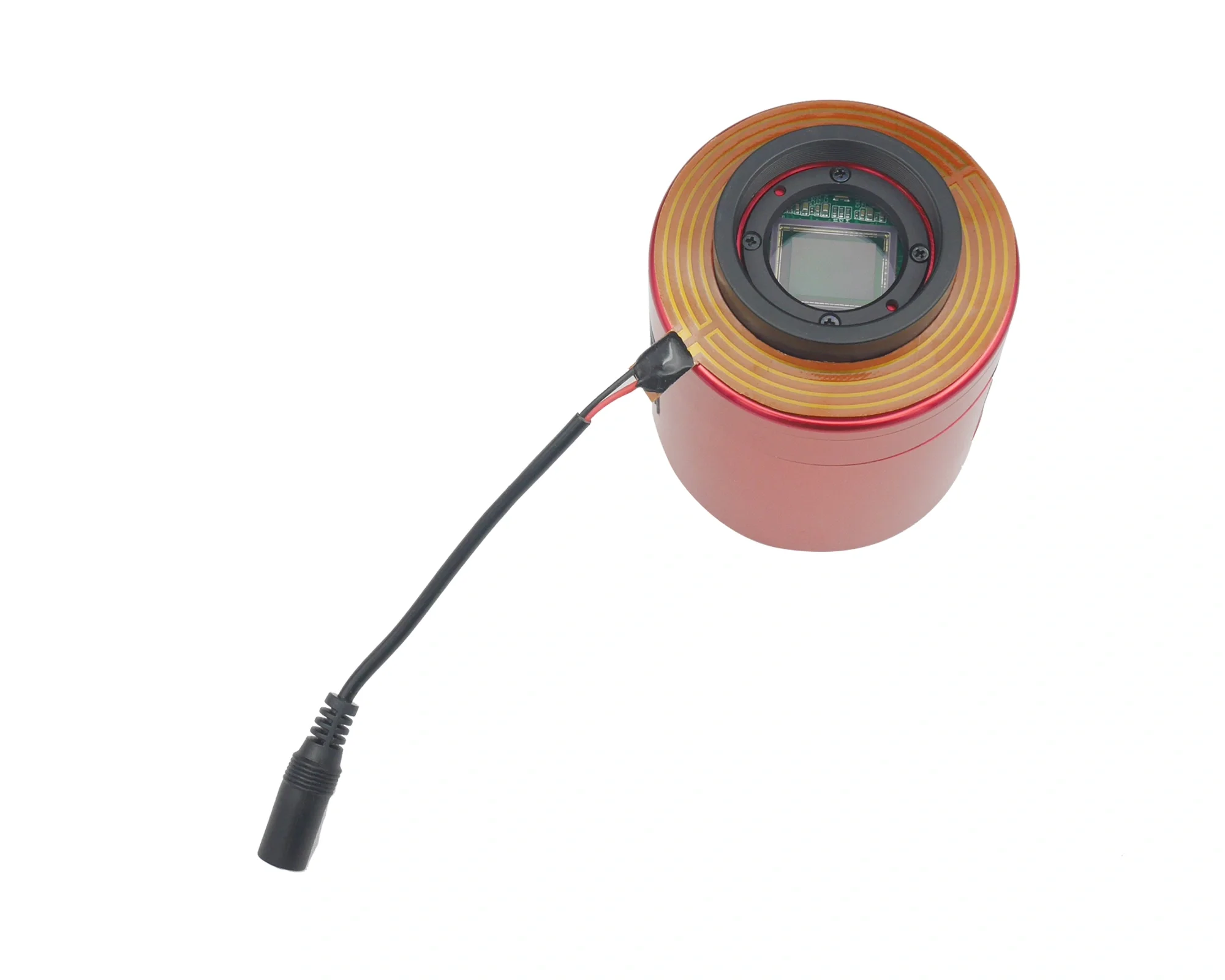

2. Put the anti-dew heater strip on the front facing of the camera and make sure the black cable is in the right position (lining next to the DC plug at the rear end)

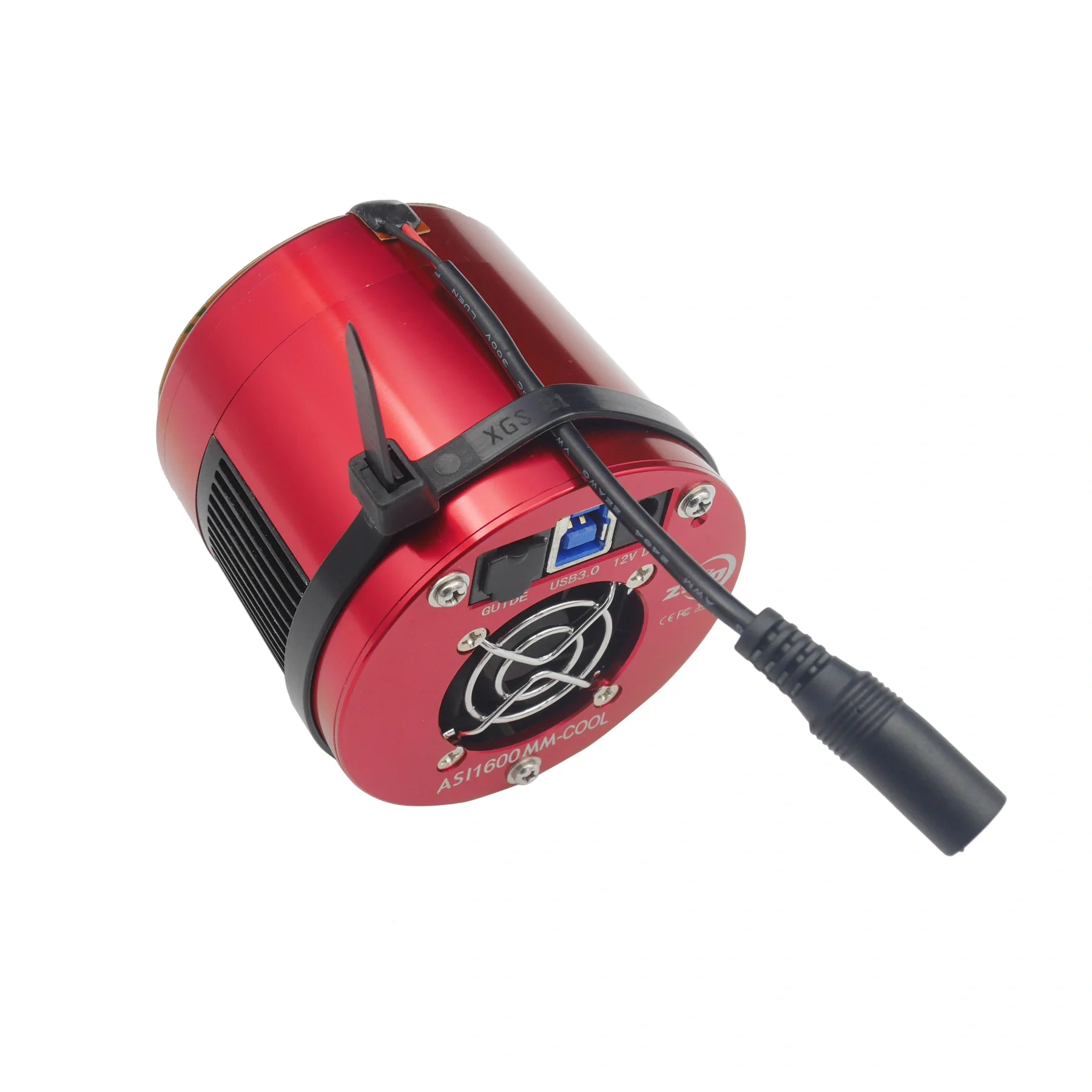

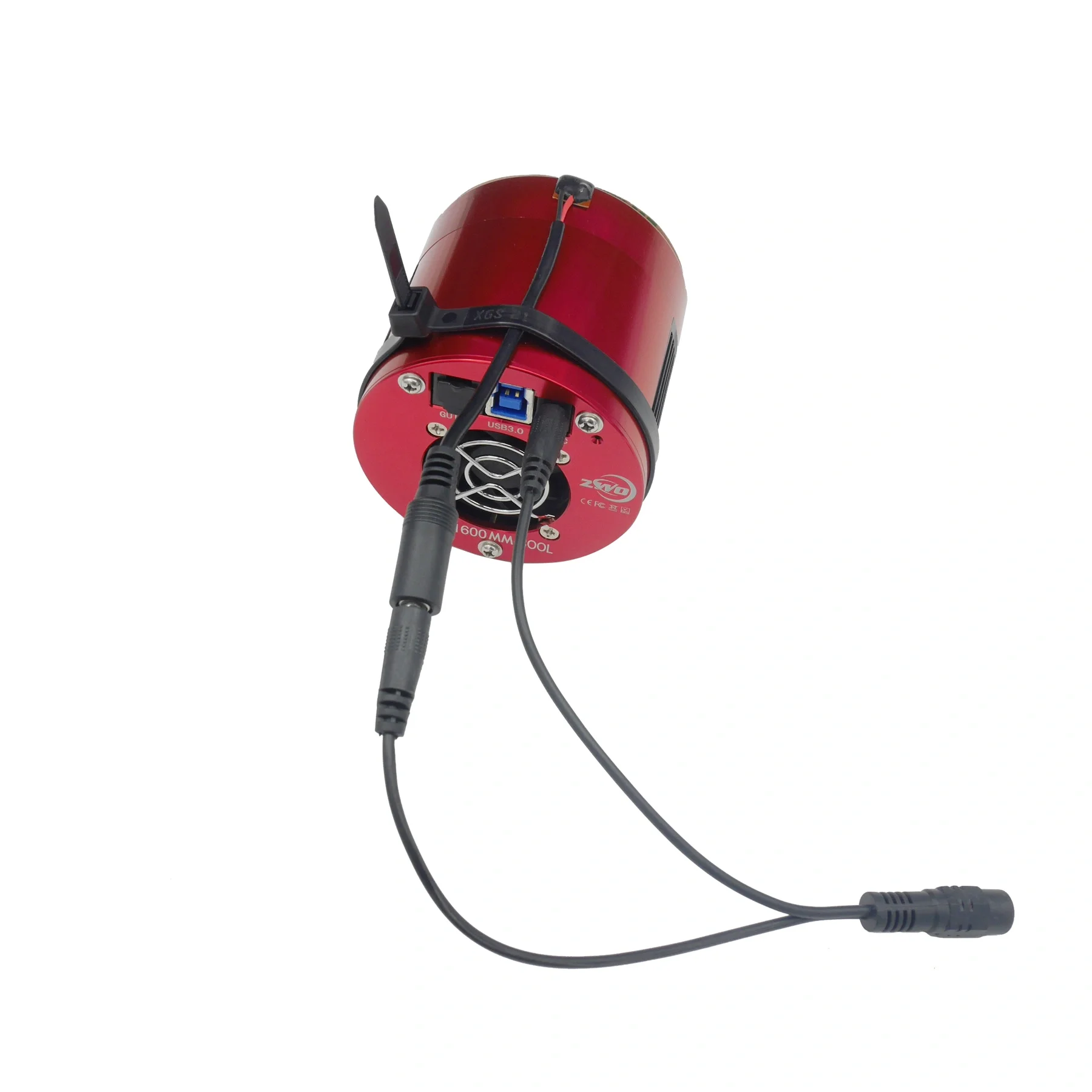

3. Tie the black cable with a zip tie on the camera body.4. Plug in the power cord, then everything is done.4. Plug in the power cord, then everything is done.

Now you should be dew-free while shooting with the camera.

NOTICE: Be careful about welding portion, it is vulnerable can not hold very strong pull.
